Description
Specification

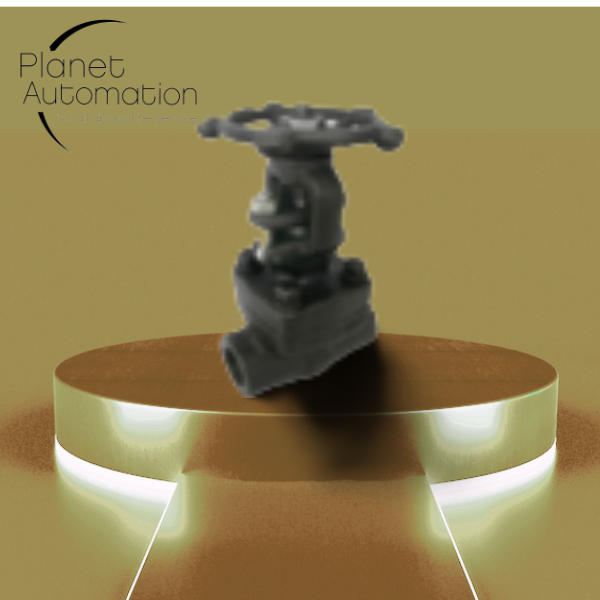

| FORGED GATE VALVE OUTSIDE SCREWED &YOKE TYPE BOLTED BONNET–ASA 800# | |
| MFG STD : | API 602 |
| TESTING & INSPECTION STD : | API 598/BS 6755 PART 1 |
| END CONNECTION : | CEWED TO BSP ,BSPT,NPT FEMAIL ,S/W TO ANSI B 16.11/BUTT WELD END |
| BODY : | ORGED A 105, FORGED A 182 (F 304), FORGED A 182 (F 316), FORGED A 182 (F 304L), FORGED A 182 (F 316L), FORGED A 182 F22 /FORGED A 182 F11 |
| SIZE – RANGE : | 6 NB TO 50NB (1/4″ TO 2″) |
| HYD–TEST PRESSURE : | FOR 800 # -HYDRAULIC TET PRESSURE -BODY:3000 PSIG ( 211KG/CM2),SEAT :2000 PSIG (140 KG /CM2) |
| HAND WHEEL: | MALLEABLE IRON/CARBON STEEL/ STANLESS STEEL |
| ACCESSORIES : | MANUAL GEAR BOX OPERATION/ MOTORIZED OPERATION |
