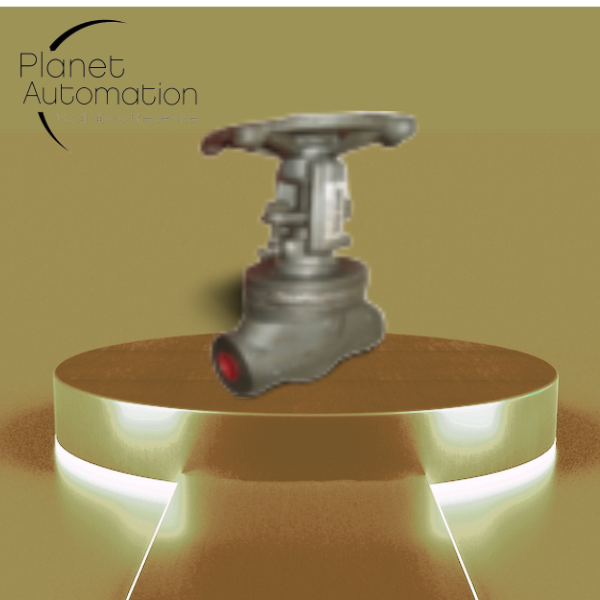

| AMTECH FORGED GATE VALVE OUTSIDE SCREWED &YOKE TYPE SEAL
WELD DESIGN –ASA 1500# & 2500# |
|
| MFG STD : | API 602 |
| TESTING & INSPECTION STD : | API 598/BS 6755 PART 1 |
| END CONNECTION : | SCEWED TO BSP ,BSPT,NPT FEMAIL ,S/W TO ANSI B 16.11 |
| BODY : | FORGED A 105, FORGED A 182 (F 304), FORGED A 182 (F 316), FORGED A 182 (F 304L), FORGED A 182 (F 316L), FORGED A 182 F22 /FORGED A 182 F11 |
| SIZE – RANGE : | 15 MM TO 40 MM |
| HYD–TEST PRESSURE : | FOR 2500 # -HYDRAULIC TET PRESSURE -: BODY : 9000 PSIG( 630 KG /CM2 ),SEAT : 6600 PSIG ( 462 KG /CM2 ) |
| HAND WHEEL: | FOR 1500#:BODY:3250 PSIG (228 KG /CM2 )5400PSIG |
| ACCESSORIES : | MANUAL GEAR BOX OPERATION/ MOTORIZED OPERATION |
