Description
Features :

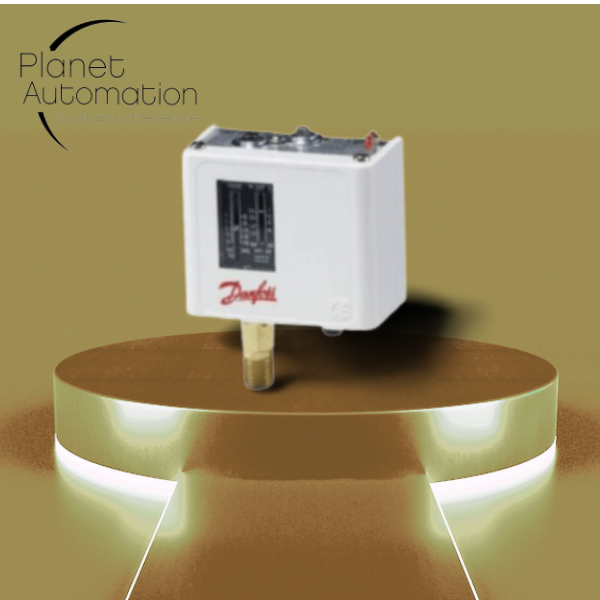

Danfoss KPI pressure switches are used for regulating, monitoring and alarm systems in industrial applications.
The KP series are suitable for plant in connection with liquid and gaseous media. They are fitted with a single-pole switch changeover (SPDT).
1. Pressure ranges: -0.2 to 28 bar
2. High contact load
3. Ultra short bounce-time
4. Available with gold plated contact systems
5. Adjustable differential
6. Enclosure IP44 when mounted with top cover and back plate
Product Specifications
| SKU | PN.PR..1549767 |
| Model No | KPI36 |
| Pressure Connection Type | NPT – 1/4-18 Female |
| Weight | 0.329 kg |
| Pressure Connection Std. | ANSI/ASME B1.20.1 |
| Ambient Temperature | -40 – 65 ?C |
| Type of Product | Pressure Switch |
| Contact Function | SPDT |
| Max. Test Pressure | 18.0 Bar |
| Electrical Conn. Male/female | Rubber Cable Gland |
| Max. Working Pressure | 18.0 Bar |
